The homoleptic magnesium bis(aluminyl) compound Mg[Al(NON)]₂ (NON = 4,5-bis(2,6-diisopropylanilido)-2,7-di-tert-butyl-9,9-dimethylxanthene) can be accessed from K₂[Al(NON)]₂ and MgI₂ and shown to possess a non-linear geometry (Al–Mg–Al = 164.8(1)) primarily due to the influence of dispersion interactions. This compound acts a four-electron reservoir in the reductive defluorination of SF₆, and reacts thermally with polar substrates such as MeI via nucleophilic attack through aluminium, consistent with the QT-AIM charges calculated for the metal centres, and a formal description as a Al(I)–Mg(II)–Al(I) trimetallic. On the other hand, under photolytic activation, the reaction with 1,5-cyclooctadiene leads to the stereoselective generation of transannular cycloaddition products consistent with radical based chemistry, emphasizing the covalent nature of the Mg–Al bonds and a description as a Al(II)–Mg(0)–Al(II) synthon.

https://doi.org/10.26434/chemrxiv-2022-s63x6

Utilizing carbon dioxide (CO₂) to make polycarbonates through the ring-opening copolymerization (ROCOP) of CO₂ and epoxides valorizes and recycles CO₂ and reduces pollution in polymer manufacturing. Recent developments in catalysis provide access to polycarbonates with well-defined structures and allow for copolymerization with biomass-derived monomers; however, the resulting material properties are under-investigated. Here, new types of CO₂-derived thermoplastic elastomers (TPEs) are described together with a generally applicable method to augment tensile mechanical strength and Young's modulus without requiring material re-design. These TPEs combine high glass transition temperature (T_g) amorphous blocks comprising CO₂-derived poly(carbonates) (A-block), with low Tg poly(ε-decalactone), from castor oil, (B-block) in ABA structures. The poly(carbonate) blocks are selectively functionalized with metal-carboxylates, where the metals are Na(I), Mg(II), Ca(II), Zn(II) and Al(III). The colorless polymers, featuring <1 wt% metal, show tunable thermal (T_g), and mechanical (elongation at break, elasticity, creep-resistance) properties. The best elastomers show >50-fold higher Young's modulus and 21-times greater tensile strength, without compromise to elastic recovery, compared with the starting block polymers. They have wide operating temperatures (-20 to 200 ˚C), high creep-resistance and yet remain recyclable. In future, these materials could substitute high-volume petrochemical elastomers and be utilized in high-growth fields like medicine, robotics and electronics.

https://doi.org/10.1002/adma.202302825

The steric tuning of a tridentate acridane-derived NNN pincer ligand allows for the isolation of a strictly T-shaped phosphine that exhibits ambiphilic reactivity. Well-defined phosphorus-centered reactivity towards nucleophiles and electrophiles is reported, contrasting with prior reports on this class of compounds. Reactions towards oxidants are also described. The latter result in the two-electron oxidation of the phosphorus atom from +III to +V, and are accompanied by a strong geometric distortion of the NNN pincer ligand. By contrast, cooperative activation of E–H (HCl, HBcat, HOMe) bonds proceeds with retention of the phosphorus redox state. When using H₂O as a substrate, the reaction results in the full disassembly of H₂O to its constituent atoms, highlighting the potential of this platform for small molecule activation reactions.

https://doi.org/10.1002/chem.202300818

The synthesis of group 9 pyridine-diimine complexes M(^DippPDI)X and [M(^DippPDI)L]⁺ (M = Co, Rh; ^DippPDI = 1,1’-(pyridine-2,6-diyl)bis(N-(2,6-diisopropylphenyl)ethan-1-imine; X = CP^-, CCH^-; L = CO, ^tBuNC) bearing a series of strong-field ligands, including the cyaphide ion (C≡P^-), is reported. A combined experimental and computational comparative study of the group 9 PDI cyaphide complexes Co(^DippPDI)(CP) and Rh(^DippPDI)(CP), as well as the N-heterocyclic carbene (NHC) gold(I) cyaphide complex Au(IDipp)(CP) (IDipp = 1,3-bis(2,6-diisopropylphenyl)imidazol-2-ylidene), reveals the σ-donor and π-acceptor properties of the κC-cyaphido ligand, and allow us to suggest a position for this ion in the spectrochemical series.

https://doi.org/10.1039/D3SC01126G

A series of dynamic metalloporphyrin [2]rotaxane molecular shuttles comprising of bis-functionalised Zn(II) porphyrin axle and pyridyl functionalised macrocycle components are prepared in high yield via active metal template synthetic methodology. Extensive variable temperature 1H NMR and quantitative UV-Vis spectroscopic titration studies demonstrate dynamic macrocycle translocation is governed by an inter-component co-ordination interaction between the macrocycle pyridyl and axle Zn(II) metalloporphyrin, which serves to bias a ‘resting state’ co-conformation. The dynamic shuttling behaviour of the interlocked structures is dramatically inhibited by the addition of a neutral Lewis base such as pyridine, but can also be tuned via post-synthetic rotaxane demetallation of the porphyrin axle core to give free-base, or upon subsequent metallation, Ni(II) [2]rotaxane analogues. Importantly, the Lewis acidic Zn(II) porphyrin axle component is also capable of coordinating anions which induces mechanical bond shuttling behaviour resulting in a novel optical sensing response.

https://doi.org/10.1002/chem.202300608

Machine learning (ML) approaches enable large-scale atomistic simulations with near-quantum-mechanical accuracy. With the growing availability of these methods there arises a need for careful validation, particularly for physically agnostic models – that is, for potentials which extract the nature of atomic interactions from reference data. Here, we review the basic principles behind ML potentials and their validation for atomic-scale materials modeling. We discuss best practice in defining error metrics based on numerical performance as well as physically guided validation. We give specific recommendations that we hope will be useful for the wider community, including those researchers who intend to use ML potentials for materials “off the shelf”.

https://doi.org/10.1063/5.0139611

The reactions of anionic aluminium or gallium nucleophiles {K[E(NON)]}₂ (E = Al, 1; Ga, 2; NON = 4,5-bis(2,6- diisopropylanilido)-2,7-ditert-butyl-9,9-dimethylxanthene) with beryllocene (BeCp₂) led to the displacement of one cyclopentadienyl ligand at beryllium and the formation of compounds containing Be−Al or Be−Ga bonds (NON)EBeCp (E = Al, 3; Ga, 4). The Be−Al bond in the beryllium−aluminyl complex [2.310(4) Å] is much shorter than that found in the small number of previous examples [2.368(2) to 2.432(6) Å], and quantum chemical calculations suggest the existence of a non-nuclear attractor (NNA) for the Be−Al interaction. This represents the first example of a NNA for a heteroatomic interaction in an isolated molecular complex. As a result of this unusual electronic structure and the similarity in the Pauling electronegativities of beryllium and aluminium, the charge at the beryllium center (+1.39) in 3 is calculated to be less positive than that of the aluminium center (+1.88). This calculated charge distribution suggests the possibility for nucleophilic behavior at beryllium and correlates with the observed reactivity of the beryllium−aluminyl complex with N,N′-diisopropylcarbodiimide − the electrophilic carbon center of the carbodiimide undergoes nucleophilic attack by beryllium, thereby yielding a beryllium−diaminocarbene complex.

https://doi.org/10.1021/jacs.3c00480

The cyaphide anion, CP^-, is shown to undergo three distinct oligomerization reactions in the coordination sphere of metals. Reductive coupling of Au(IDipp)(CP) (IDipp=1,3-bis(2,6-diisopropylphenyl)imidazol-2-ylidene) by Sm(Cp*)₂(OEt₂) (Cp* = 1,2,3,4,5-pentamethylcyclopentadienyl), was found to afford a tetra-metallic complex containing a 2,3-diphosphabutadiene-1,1,4,4-tetraide fragment. By contrast, non-reductive dimerization of Ni(SIDipp)(Cp)(CP) (SIDipp=1,3-bis(2,6-diisopropylphenyl)-imidazolidin-2-ylidene; Cp = cyclopentadienyl), gives rise to an asymmetric bimetallic complex containing a 1,3-diphosphacyclobutadiene-2,4-diide moiety. Spontaneous trimerization of Sc(Cp*)₂(CP) results in the formation of a trimetallic complex containing a 1,3,5-triphosphabenzene-2,4,6-triide fragment. These transformations show that while cyaphido transition metal complexes can be readily accessed using metathesis reactions, many such species are unstable to further oligomerization processes.

https://doi.org/10.1002/anie.202218047

The reduction of the boryl-substituted SnII bromide {(HCDippN)₂B}Sn(IPrMe)Br with 1.5 equivalents of potassium graphite leads to the generation of the cyclic tetratin tetraboryl system K₂[Sn₄{B(NDippCH)₂}₄], a homo-metallic heavier analogue of the cyclobutadiene dianion. This system is non-aromatic as determined by Nucleus Independent Chemical Shift Calculations (NICS(0) = 0.28, NICS(1) = 3.17), with the primary contributing resonance structures shown by Natural Resonance Theory (NRT) to involve a Sn=Sn double bond and 1,2-localized negative charges. Abstraction of the K⁺ cations or oxidation leads to contraction or cleavage of the Sn4 unit, respectively, while protonation generates the neutral dihydride 1,2-Sn₄{B(NDippCH)₂}₄H₂ (a heavier homo- logue of cyclobutene) in a manner consistent with the predicted charge distribution in the [Sn₄{B(NDippCH)₂}₄]₂ dianion.

https://doi.org/10.1002/chem.202300006

Boryltin compounds featuring the metal in the + 1 or 0 oxidation states can be synthesized from the carbene- stabilized tin(II) bromide (boryl)Sn(NHC)Br (boryl = {B(NDippCH)₂}; NHC=C{(NiPrCMe)₂}) by the use of strong reducing agents. The formation of the mono-carbene stabilized distannyne and donor-free distannide systems (boryl)SnSn(IPrMe)(boryl) (2) and K₂[Sn₂(boryl)₂] (3), using Mg(I) and K reducing agents mirrors related germanium chemistry. In contrast to their lighter congeners, however, systems of the type [Sn(boryl)]n are unstable with respect to disproportionation. Carbene abstraction from 2 using BPh₃, and two-electron oxidation of 3 both result in the formation of a 2 : 1 mixture of the Sn(II) compound Sn(boryl)₂, and the hexatin cluster, Sn₆(boryl)₄ (4). A viable mechanism for this rearrangement is shown by quantum chemical studies to involve a vinylidene intermediate (analogous to the isolable germanium compound, (boryl)2Ge=Ge), which undergoes facile atom transfer to generate Sn(boryl)₂ and trinuclear [Sn₃(boryl)₂]. The latter then dimerizes to give the observed hexametallic product 4, with independent studies showing that similar trigermanium species aggregate in analogous fashion.

https://doi.org/10.1002/chem.202203395

The reaction of TaMe₃Cl₂ with the rigid acridane- derived trisamine H₃NNN yields the tantalum(V) complex [TaCl₂(NNN^cat)]. Subsequent reaction with dioxygen results in the full four-electron reduction of O₂ yielding the oxido- bridged bimetallic complex [{TaCl₂(NNN^sq)}₂O]. This dinuclear complex features an open-shell ground state due to partial ligand oxidation and was comprehensively characterized by single crystal X-ray diffraction, LIFDI mass spectrometry, NMR, EPR, IR and UV/VIS/NIR spectroscopy. The mechanism of O₂ activation was investigated by DFT calculations revealing initial binding of O₂ to the tantalum(V) center followed by complete O₂ scission to produce a terminal oxido-complex.

https://doi.org/10.1002/chem.202203266

A systematic study to access stable stannaimines is reported, by combining different heteroleptic stannylenes with a range of organic azides. The reactions of terphenyl-/hypersilyl- substituted stannylenes yield the putative tin nitrogen double bond, but is directly followed by 1,2-silyl migration to give Sn(II) systems featuring bulky silylamido ligands. By contrast, the transition from a two σ donor ligand set to a mixed σ-donor / π-donor scaffold allows access to three new stannaimines which can be handled at room temperature. The reactivity profile of these Sn=N bonded species is crucially dependent on the substituent at the nitrogen atom. As such, the Sn=NMes (Mes = 2,4,6-Me₃C₆H₂) system is capable of activating a broad range of substrates under ambient conditions via 1,2-addition reactions, [2+2] and [4+2] cycloaddition reactions. Most interestingly, very rare examples of main group multiple bond metathesis reactions are also found to be viable.

https://doi.org/10.1002/anie.202211616

The development of sustainable plastic materials is an essential target of chemistry in the 21st century. Key objectives toward this goal include utilizing sustainable monomers and the development of polymers that can be chemically recycled/degraded. Polycarbonates synthesized from the ring-opening copolymerization (ROCOP) of epoxides and CO₂, and polyesters synthesized from the ROCOP of epoxides and anhydrides, meet these criteria. Despite this, designing efficient catalysts for these processes remains challenging. Typical issues include the requirement for high catalyst loading; low catalytic activities in comparison with other commercialized polymerizations; and the requirement of costly, toxic cocatalysts. The development of efficient catalysts for both types of ROCOP is highly desirable. This Account details our work on the development of catalysts for these two related polymerizations and, in particular, focuses on dinuclear complexes, which are typically applied without any cocatalyst. We have developed mechanistic hypotheses in tandem with our catalysts, and throughout the Account, we describe the kinetic, computational, and structure–activity studies that underpin the performance of these catalysts. Our initial research on homodinuclear M(II)M(II) complexes for cyclohexene oxide (CHO)/CO₂ ROCOP provided data to support a chain shuttling catalytic mechanism, which implied different roles for the two metals in the catalysis. This mechanistic hypothesis inspired the development of mixed-metal, heterodinuclear catalysts. The first of this class of catalysts was a heterodinuclear Zn(II)Mg(II) complex, which showed higher rates than either of the homodinuclear [Zn(II)Zn(II) and Mg(II)Mg(II)] analogues for CHO/CO₂ ROCOP. Expanding on this finding, we subsequently developed a Co(II)Mg(II) complex that showed field leading rates for CHO/CO₂ ROCOP and allowed for unique insight into the role of the two metals in this complex, where it was established that the Mg(II) center reduced transition state entropy and the Co(II) center reduced transition state enthalpy. Following these discoveries, we subsequently developed a range of heterodinuclear M(III)M(I) catalysts that were capable of catalyzing a broad range of copolymerizations, including the ring-opening copolymerization of CHO/CO₂, propylene oxide (PO)/CO₂, and CHO/phthalic anhydride (PA). Catalysts featuring Co(III)K(I) and Al(III)K(I) were found to be exceptionally effective for PO/CO₂ and CHO/PA ROCOP, respectively. Such M(III)M(I) complexes operate through a dinuclear metalate mechanism, where the M(III) binds and activates monomers while the M(I) species binds the polymer change in close proximity to allow for insertion into the activated monomer. Our research illustrates how careful catalyst design can yield highly efficient systems and how the development of mechanistic understanding aids this process. Avenues of future research are also discussed, including the applicability of these heterodinuclear catalysts in the synthesis of sustainable materials.

https://doi.org/10.1021/acs.accounts.2c00197

We report on the insertion of alkynes into heterometallic M–M' bonds, producing (aluminylalkenyl)copper compounds which possess differential reactivity at the two derived M–C functions. Uniquely, this system is capable of controlling access to isolable syn or anti dimetallated alkenes, by employing either kinetic or thermodynamic control. Variation of reaction time also allows regiocontrol to be exerted over the insertion of unsymmetrical alkynes. Subsequent derivatization with CO is both stereoselective (to syn systems) and regioselective (to Cu–C bonds), leading to the formation of the first structurally characterized examples of copper acyl compounds - aided by the cooperative reactivity of the proximal aluminium centre.

https://doi.org/10.1039/D2CC02578G

The synthesis of heterometallic transition metal complexes featuring bridging cyaphide ions (C≡P⁻) is reported. These are synthesized from reactions of Au(IDipp)(CP) (IDipp = 1,3-bis(2,6-diisopropylphenyl)imidazol-2-ylidene) with electron-rich, nucleophilic transition metal reagents, affording Au(IDipp)(μ₂-C≡P)Ni(^MeIⁱPr)₂ (^MeIⁱPr = 1,3-diisopropyl-4,5-dimethylimidazol-2-ylidene) and Au(IDipp)(μ₂-C≡P)Rh(Cp*)(PMe₃). These studies reveal that, in contrast to the cyanide ion, bimetallic cyaphido complexes strongly favour a η¹:η² coordination mode that maximises the interaction of the second metal (Ni, Rh) with the π-manifold of the ion (and not the phosphorus atom lone pair). End-on bridging can be effectively unlocked by blocking the π-manifold, as demonstrated by reaction of Au(IDipp)(μ²-C≡P)Rh(Cp*)(PMe₃) with an electrophilic transition metal reagent, W(CO)₅(THF), which affords the heterotrimetallic compound Au(IDipp)(μ₃-C≡P)[Rh(Cp*)(PMe₃)][W(CO)₅].

https://doi.org/10.1002/anie.202206783

Homologation of carbon monoxide is central to the heterogeneous Fischer Tropsch Process for the production of hydrocarbon fuels. C–C bond formation has been modelled by homogeneous systems, with [C_nO_n]^2- fragments (n = 2-6) formed by two-electron reduction being commonly encountered. Here we show that four- or six-electron reduction of CO can be accomplished by the use of anionic aluminium(I) ('aluminyl') compounds, to give both topologically linear and branched C4/C6 chains. We show that the mechanism for homologation relies on the highly electron-rich nature of the aluminyl reagent, and on an unusual mode of interaction of the CO molecule, which behaves primarily as a Z-type ligand in initial adduct formation. The formation of [C₆O₆]^4- from [C₄O₄]^4- shows a solution-phase CO homologation process that brings about chain branching via complete C-O bond cleavage, while comparison of the linear [C₄O₄]^4- system with the [C₄O₄]^6- congener formed under more reducing conditions, models the net conversion of C–O bonds to C–C bonds in the presence of additional reductant.

https://doi.org/10.1021/jacs.2c05228

The reaction of amido-substituted stannylenes with phospha-Wittig reagents (Me₃PPR) results in release of hexamethyldisilazane and tethering of the resulting −CH₂PMe₂PR fragment to the tin center to give P-donor stabilized stannylenes featuring four-membered Sn,C,P,P heterocycles. Through systematic increases in steric loading, the structures of these systems in the solid state can be tuned, leading to successive P–P bond lengthening and Sn–P contraction and, in the most encumbered case, to complete P-to-Sn transfer of the phosphinidene fragment. The resulting stannaphosphene features a polar Sn=P double bond as determined by structural and computational studies. The reversibility of phosphinidene transfer can be established by solution phase measurements and reactivity studies.

https://doi.org/10.1021/jacs.2c03302

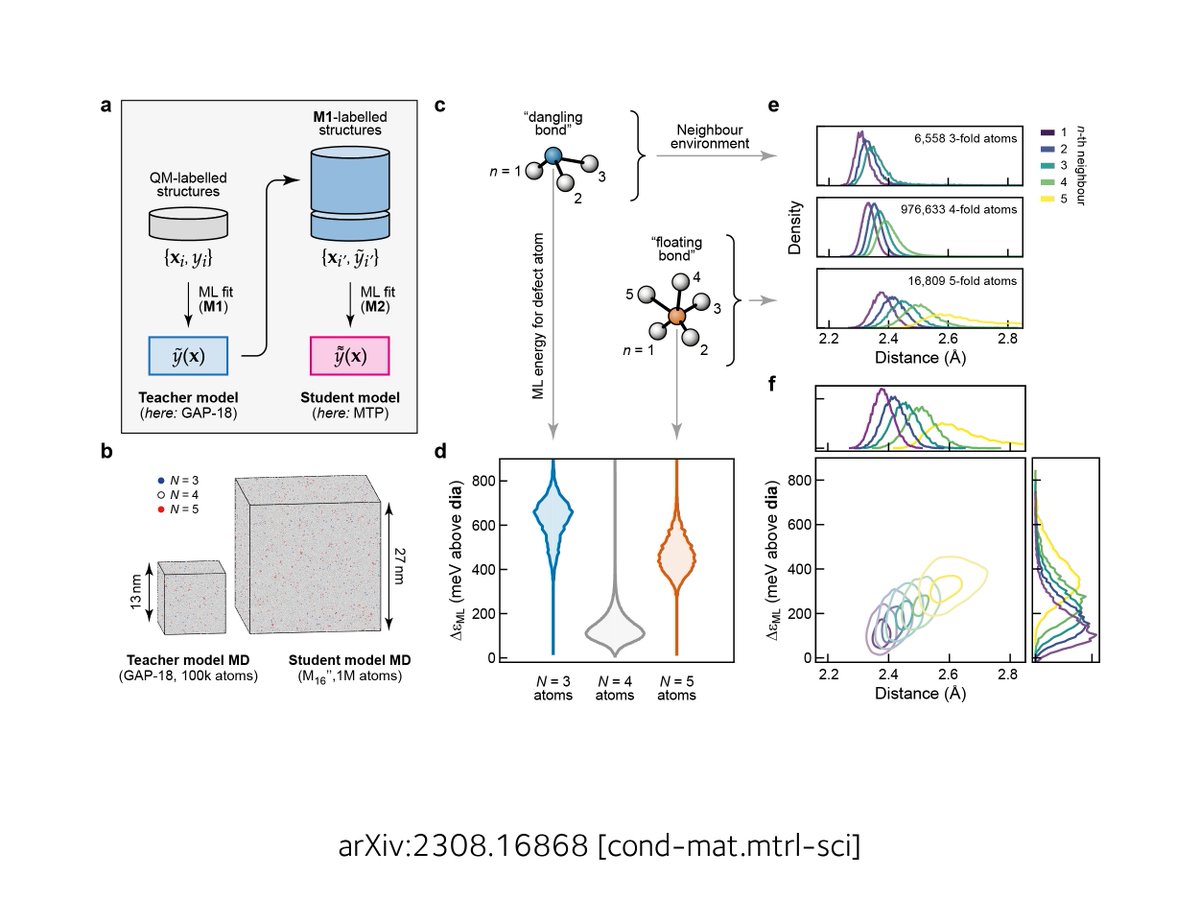

Machine learning (ML) based interatomic potentials are emerging tools for material simulations, but require a trade-off between accuracy and speed. Here, we show how one can use one ML potential model to train another: we use an accurate, but more computationally expensive model to generate reference data (locations and labels) for a series of much faster potentials. Without the need for quantum-mechanical reference computations at the secondary stage, extensive reference datasets can be easily generated, and we find that this improves the quality of fast potentials with less flexible functional forms. We apply the technique to disordered silicon, including a simulation of vitrification and polycrystalline grain formation under pressure with a system size of a million atoms. Our work provides conceptual insight into the ML of interatomic potential models and suggests a route toward accelerated simulations of condensed-phase systems.

https://doi.org/10.1063/5.0099929

The cyanide ion plays a key role in a number of industrially relevant chemical processes, such as the extraction of gold and silver from low grade ores. Metal cyanide compounds were arguably some of the earliest coordination complexes studied and can be traced back to the serendipitous discovery of Prussian blue by Diesbach in 1706. By contrast, heavier cyanide analogues, such as the cyaphide ion, C≡P–, are virtually unexplored despite the enormous potential of such ions as ligands in coordination compounds and extended solids. This is ultimately due to the lack of a suitable synthesis of cyaphide salts. Herein we report the synthesis and isolation of several magnesium–cyaphido complexes by reduction of iPr₃SiOCP with a magnesium(I) reagent. By analogy with Grignard reagents, these compounds can be used for the incorporation of the cyaphide ion into the coordination sphere of metals using a simple salt-metathesis protocol.

https://doi.org/10.1021/jacs.1c04417

Template-directed synthesis has been used to prepare a fully π-conjugated cyclic porphyrin octamer, composed of both β,meso,β-edge-fused porphyrin tape units and butadiyne-linked porphyrins. The UV–vis–NIR spectra of this partially fused nanoring show that π-conjugation extends around the whole macrocycle, and that it has a smaller HOMO–LUMO gap than its all-butadiyne-linked analogue, as predicted by TD-DFT calculations. The ¹H NMR shifts of the bound templates confirm the disrupted aromaticity of the edge-fused porphyrins in the neutral nanoring. NMR oxidation titrations reveal the presence of a global paratropic ring current in its 4+ and 8+ oxidation states and of a global diatropic ring current in the 6+ state of the partially fused ring. The paratropic ring current in the 4+ oxidation state is about four times stronger than that in the all-butadiyne-linked cyclic octamer complex, whereas the diatropic current in the 6+ state is about 40% weaker. Two isomeric K-shaped tetrapyridyl templates with trifluoromethyl substituents at different positions were used to probe the distribution of the ring current in the 4+, 6+, and 8+ oxidation states by ¹⁹F NMR, demonstrating that the ring currents are global and homogeneous.

https://doi.org/10.1021/jacs.0c09973
